Travel Trailers
Home
i-Go
An EverGreen for Everyone.
The concept of the i-Go Lite travel trailers and fifth wheels is to provide economy conscious camping families the opportunity to own a lightweight, quality built EverGreen. The i-Go is crafted with the same aluminum-framed, vacuum-laminated processes and quality control systems as all EverGreen products.
Click on an image below to enlarge the floorplan
| TRAVEL TRAILERS | |
 Model G220RB |
 Model G236RBK |
 Model G239BH |
 Model G249RB |
|
|
|
| FIFTH WHEEL TRAILERS | |
|
|
|
Construction
Steel I-beam frame • Vacuum-laminated side walls, roof and floors • Composite inner shell to help prevent rot, mold or mildew • Tough fiberglass reinforced exterior • Fully welded aluminum framed sidewalls, roof and floor includes window framing • Walk-on crowned roof fully laminated with white, reflective TPO material • Four, frame-mounted stabilizer jacks • Easy-Flex suspension • Protective enclosed underbelly
Exterior
Large, dark tinted radius windows • Porch light • 14-inch radial, nitro-filled tires with steel rims • Outside shower • Exterior speakers • Awning • Radius entry door with large grab handles • Large pass-through storage • Designer graphics • Double entry steps • Spare tire and kit with cover • Large baggage doors with compression latches
Utilities
Six-gallon gas/electric direct spark ignition water heater • Power cord with the LED indicator light • Two, 20-pound LP tanks with hard cover • Exterior LCD TV hook up with bracket, cable hook up • Furnace • Ducted roof AC • TV antenna and booster • Digital tank readout • Water pump with winterizing inlet • Fire extinguisher, carbon monoxide detector, smoke alarm
Interior

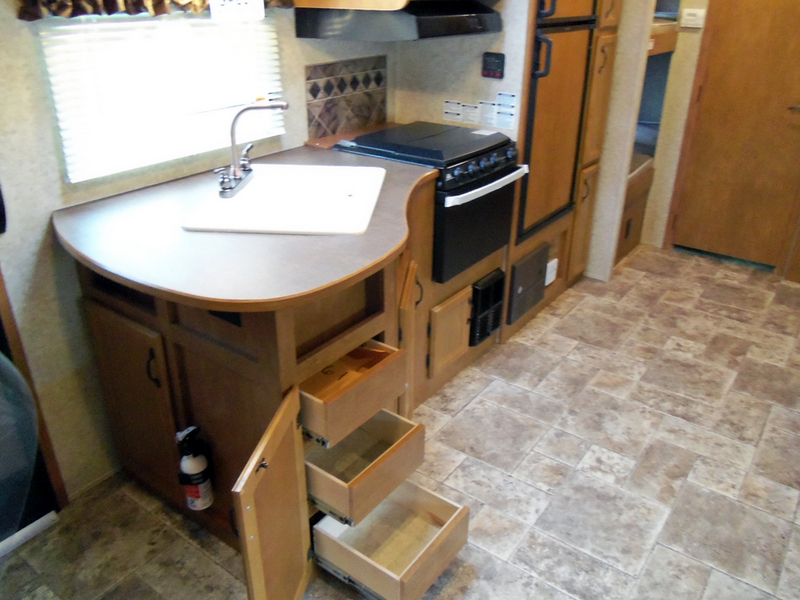

Kitchen- Padded ‘no crack' vinyl flooring • Large kitchen window with blind • Full-size composite sink with cover and gooseneck faucet • Skylight with shade • Screwed and glued solid wood cabinetry • Microwave • Three burner cook top • Double door refrigerator/freezer
Living- Swivel entertainment center with optional 20 inch TV • AM/FM/DVD/CD, with USB/SD port • Ceiling speakers

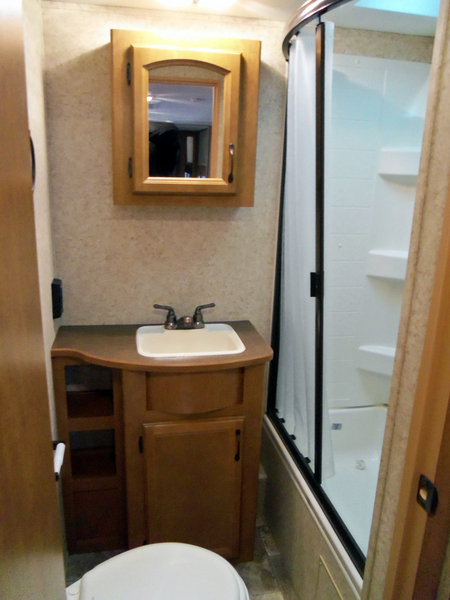

Bath- Porcelain foot flush toilet • Full tub/or neo-angled shower • Skylight over shower/tub • Large medicine cabinet and mirror • Towel hooks • Power exhaust fan • Oil rubbed bronze fixtures
Bedroom- Queen bed with inner spring mattress • Under-bed storage with lift struts • Bed spread, headboard • Dual wardrobe and drawer storage • Two nightstand nooks with power outlets
Options
• Aluminum wheels • glass shower surround • 15K BTU air conditioner • 20 inch, LCD
flat screen TV • power awning • convection microwave • gas oven • Hi-Output fan in
bedroom • power tongue jack • solar battery charger • composite 20# LP tank.
| i-Go Travel Trailers |
||||
| G220RB | G236RBK | G239BH | G249RB | |
| Total Dry Weight* (UVW): |
4,650 | 4,841 | 4,820 | 4,840 |
| Dry Hitch Weight* (LBS): |
495 | 589 | 515 | 563 |
| GVWR* (LBS) |
5,995 | 6,195 | 6,295 | 6,195 |
| Fresh Water Capoacity (GAL): |
36 | 36 | 36 | 36 |
| Gray Water Tank Capacity (GAL): |
29 | 29 | 29 | 29 |
| Black Water Tank Capacity (GAL): |
29 | 29 | 29 | 29 |
| LP Capacity (LBS): | 40 | 40 | 40 | 40 |
| Cargo Carrying Capacity* (LBS) |
1,046 | 1,055 | 1,176 | 1,056 |
| Overall Length: | 25' 6" | 26' 4" | 27' 3" | 27' 9" |
| Height (including A/C): |
10' 8" | 10' 8" | 10' 8" | 10' 8" |
| Width: | 7' 7" | 7' 7" | 7' 7" | 7' 7" |
| Bed Size: | 60" x 74" | 60" x 74" | 60" x 74" | 60" x 74" |
| Awning Length: | 15' | 14' | 16' | 18' |
| Tire Size: | ST205/75R14-C | |||
* All weights are approximate
| i-Go Travel Trailers | i-Go Fifth Wheel | |||
| G256BH | G269FK | G27RK-5 | G27RL-5 | |
| Total Dry Weight* (UVW): |
5,108 | 5,007 | 6,315 | 6,200* |
| Dry Hitch Weight* (LBS): |
593 | 676 | 1,056 | 950* |
| GVWR* (LBS) |
6,495 | 6,495 | 7,995 | 7,895* |
| Fresh Water Capacity (GAL): |
36 | 36 | 36 | 36 |
| Gray Water Tank Capacity (GAL): |
29 | 29 | 29 | 29 |
| Black Water Tank Capacity (GAL): |
29 | 29 | 29 | 29 |
| LP Capacity (LBS): |
40 | 40 | 40 | 40 |
| Cargo Carrying Capacity* (LBS) |
1,088 | 1,189 | 1,381 | 1,396* |
| Overall Length: | 28'10" | 29' 8" |
30' |
30' |
| Height (including A/C): |
10' 8" | 10' 8" | 11' 1" | 11' 1" |
| Width: | 7' 7" | 7' 7" | 7' 4" | 7' 4" |
| Bed Size: | 60" x 74" | 60" x 74" | 60" x 74" | 60" x 74" |
| Awning Length: | 17' | 19' | 16' | 16' |
| Tire Size: | ST205/75R14-C | ST225/75R15-D | ST225/75R15-D | |
* Estimated Weights. Specifications subject to change.
